Industrial Rubber Production Using Pure Water Reverse Osmosis Machine For Sale 5000L/H

Place of Origin Taian, China
Brand Name Tonglida
Certification ISO9001
Model Number TLD-RO-5000
Minimum Order Quantity 1
Price $9000-$10,000
Packaging Details wooden case
Delivery Time 10 working days
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability 100 unit/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Water Purification Color Customerized
Packing Plastic Film+Wooden Case Material Of Tank Stainless Steel/ FRP Vessel
Machinery Test Report Provided Technology Reverse Osmosis
Membrane Type Low-Pressure Membrane Size 2700*1400*2100mm
Capacity 5000L/H Origin Taian, Shandong
Product Material Composite Material Power Source Electric
Port Qingdao
Highlight

Industrial Rubber Production ro equipment

,

Pure Water ro equipment

,

5000L/H commercial ro unit
Leave a Message
Product Description

Industrial Rubber Production Using Pure Water Reverse Osmosis 5000L/H



  • The 5000L/H Single Stage Reverse Osmosis System is a system designed for medium-sized industrial and commercial water treatment projects, especially for chemical processing, industrial production. The system is capable of efficiently filtering pure and ultrapure water to ensure that the water used in the production process meets the required quality standards.
  • Through optimized reverse osmosis membrane configuration and high performance automation control, the system not only ensures stable water output, but also reduces energy consumption and operating costs.
  • As an economical water treatment system, the 5000L/H reverse osmosis system is an ideal choice for many small and medium-sized enterprises in water treatment as it guarantees the quality and stability of the water output with low investment and maintenance costs.

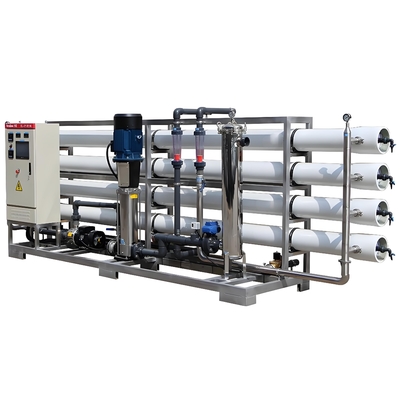

 Industrial Rubber Production Using Pure Water Reverse Osmosis Machine For Sale 5000L/H 0



1. Technical Architecture





Designed water yield: 5000L/h ±5%

Desalination rate: ≥97-98%

Working pressure range: 0.4~1.6MPa (according to the membrane type)

Power supply requirements: optional

Control system: PLC+touch screen (can be customized)

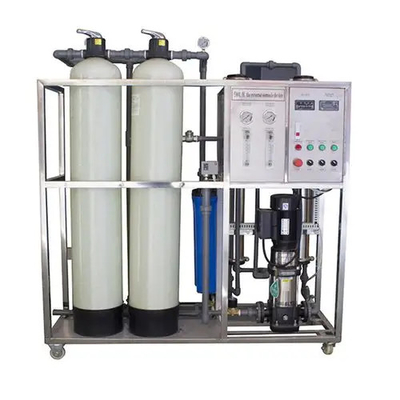

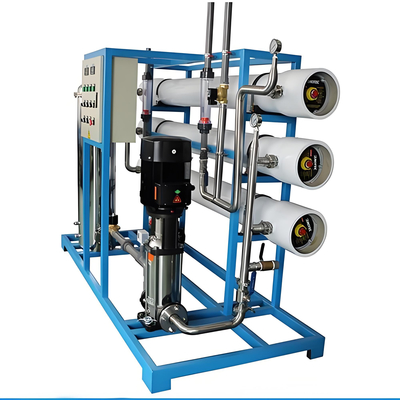

Industrial Rubber Production Using Pure Water Reverse Osmosis Machine For Sale 5000L/H 1Industrial Rubber Production Using Pure Water Reverse Osmosis Machine For Sale 5000L/H 2Industrial Rubber Production Using Pure Water Reverse Osmosis Machine For Sale 5000L/H 3

Industrial Rubber Production Using Pure Water Reverse Osmosis Machine For Sale 5000L/H 4Industrial Rubber Production Using Pure Water Reverse Osmosis Machine For Sale 5000L/H 5



3. System Composition



Processing Capacity 5000 liters/hour
Primary pre-treatment Quartz sand filter, which is used for the removal of large particles of impurities such as suspended solids and silt in the raw water.
Secondary pre-treatment Activated carbon filter can effectively adsorb odor, organic matter, residual chlorine and so on.
Three-stage pre-treatment Water softener or dosing device to soften the water
Four-stage pre-treatment 5μm cartridge filter to further intercept fine particles, to protect the reverse osmosis membrane is not blocked.
High pressure booster pump Stainless steel multi-stage centrifugal pump to ensure stable system pressure.
Reverse osmosis host Membrane shell, membrane elements, pressure piping constitutes the core unit to realize the depth of water purification.
Electric control cabinet and instrumentation system Flow meters, pressure gauges, conductivity meters, low pressure protection, automatic flushing control.
Pure Water Collection System Equipped with aseptic storage tanks to store purified water





4. Performance Parameters and Operational Requirements



  • Under standard operating conditions, the hourly water production of this system is 5000L, and the desalination rate can reach 98%. The recommended inlet water conductivity of the system does not exceed 2000μS/cm, and the working pressure is usually between 1.2 and 1.6 MPa.
  • Power supply requirement: optional
  • Inlet water requirement: applicable to municipal water source, groundwater, surface water (after pretreatment), etc.
  • Outlet water quality: meets the requirements of pure water or high standard process water.



5. Applicable Scenarios and Maintenance Suggestions



  • Produces synthetic rubbers, such as styrene-butadiene rubber (SBR) and butadiene rubber (SR), used in tires, seals, and industrial products.
  • In order to keep the system running stably for a long period of time, it is recommended to check the status of the reverse osmosis membrane and carry out cleaning and maintenance of the membrane module on a regular basis. At the same time, it is necessary to regularly monitor the quality of the incoming water and adjust the settings as needed. The pretreatment portion of the system (e.g., multi-media filters and activated carbon) also requires regular replacement of filter media based on usage.
