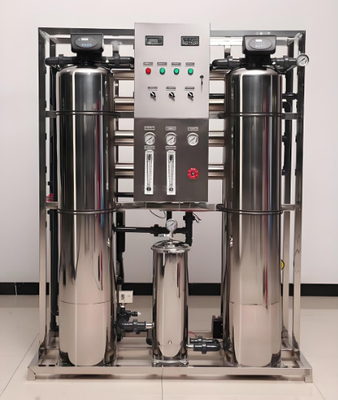

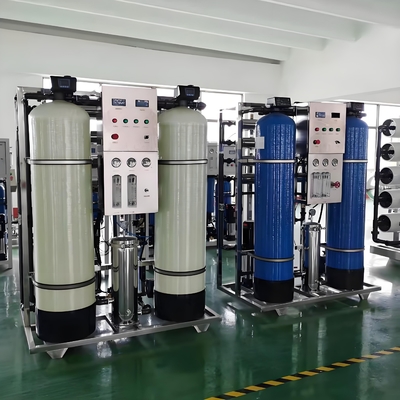

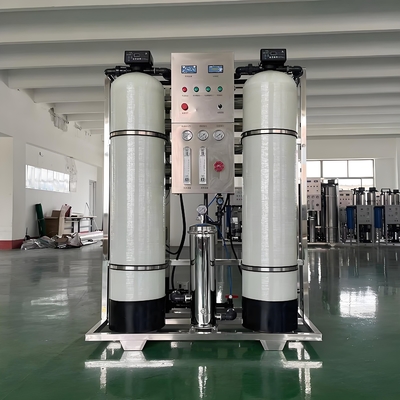

Medical Pharmaceutical Factory 1000L/H Single-Stage Reverse Osmosis System

• 1000L Single-Stage Reverse Osmosis System is a small industrial-grade water treatment system, which adopts single-stage RO membrane technology, and can stably produce 1000L/H high-purity water (desalination rate of 95%-98%).

• At the same time, the system is equipped with intelligent PLC control, energy-efficient high-pressure pumps and corrosion-resistant stainless steel piping, supporting variable frequency adjustment and modular expansion (can be upgraded to two-stage RO or EDI).

• The system's perfect pre-treatment unit (quartz sand + activated carbon + softening) can adapt to raw water with conductivity ≤ 2000us/cm, and working pressure 0.4-1.6MPa.

1. Core Features

• Stable water production with large flow rate: it adopts RO membrane with high desalination rate, and the desalination efficiency of 95%~98% can be realized by single-stage treatment, which is suitable for small-scale water demand.
• Intelligent control system: it is equipped with touch screen or PLC automation management, which can monitor the flow, pressure and water quality in real time, and support automatic flushing, fault alarm and data recording.
• Energy saving and consumption reduction: Energy efficient high pressure pumps are designed, and the optimized design of piping can reduce energy loss. Frequency control can be selected.
• Corrosion-resistant structure: The main piping of the system is made of stainless steel, and the membrane housing is made of fiberglass or stainless steel to adapt to the complex water quality environment.
• Flexible expansion: Dual-stage RO or integrated EDI module can be selected to further enhance the water quality to ultrapure water standard (≤10μS/cm).

2. Technical Specifications (1000L/H model)

• Rated water production capacity: 1000L/H
• Inlet water quality requirements: EC ≤ 2000us/cm, pH 2~11
• Operating pressure: 0.4~1.6MPa (adjusted according to the membrane type)
• Power supply: 220V, 380V/50Hz
• Pre-treatment unit: quartz sand filter, activated carbon filter, softener or dosing device, 5μm security filters. m security filter
• Dimensions of the whole machine: about 1700mm×800mm×2000mm (L×W×H)

3. System Structural Composition

• Pre-treatment system: quartz sand filter, activated carbon filter, water softener or dosing device, 5um precision filter
• High-pressure pumping unit: using China's advanced energy-saving certificated high-pressure pumping unit to provide stable pressure to ensure the high efficiency of RO membrane operation.
• Membrane stack system: single-stage arrangement or parallel connection according to customer's site condition
• RO system instrumentation
• Cleaning and disinfection unit: integrated CIP cycle cleaning interface to reduce the risk of membrane contamination.
• Control valves
• Electronic control and monitoring: centralized control cabinet equipped with pressure sensors, conductivity meters and flow meters to achieve unattended operation.

4. Typical Applications

• It is used for medical infusion, pharmaceuticals, biochemical products, dialysis and so on. Preparation of Purified Water and Water for Injection (WFI)
• 1000L single-stage reverse osmosis system with cost-effective, low-maintenance and modular design, becoming the ideal choice for medium-sized enterprises and institutions, while supporting customized upgrades to meet higher water quality requirements.
